45mm Shisha Hookah Hose / Air Conditioner Hose Corrugated Pipe Making Machine

Name: 45mm Shisha Hookah Hose Air Conditioner Hose Corrugated Pipe Making Machine
Brand: SINO-HOLYSON
Price: 19 USD

Buy cheap 45mm Shisha Hookah Hose / Air Conditioner Hose Corrugated Pipe Making Machine product

Place of Origin : Shandong, China

Brand Name : SINO-HOLYSON

Certification : CE ISO9001

Packaging Details : FCL (Full Container Load) 20GP

Supply Ability : 10 Set/Sets per Quarter

Price : $19,000.00 - $22,500.00/sets

Condition : New

Plastic Processed : PVC PP PA HDPE

Application : PIPE, Flexible Tube

Screw Design : Single-screw

Screw Material : 38CrMoALA

Screw diameter (mm) : 45mm

Screw L/D Ratio : 28:1

Screw Speed (rpm) : 75 rpm

Showroom Location : None

Voltage : 380V 50HZ 3Phase(Customized)

Dimension(L*W*H) : 20mx2.5mx2.2m

Weight : 2000 KG

Warranty : 1 year, 12 months

Key Selling Points : Automatic

Applicable Industries : Manufacturing Plant, Corrugated Pipe Machine

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Bearing

Machinery Test Report : Provided

Color : Customized

Automatic Grade : Automatic

Power : 18.5kw

After-sales Service Provided : Online support

Marketing Type : New Product 2022

Contact Now

SINO-HOLYSON HSJ-45/55 Shisha Hookah Corrugated Pipe Making Machine with Performance

45mm Shisha Hookah Hose / Air Conditioner Hose Corrugated Pipe Making Machine

Product Description

HSJ-45 PLASTIC CORRUGATED PIPE MAKING MACHINE

Shisha Hookah Hose, Air Conditioner Hose

General Introduction:

This HSJ-45/55 Plastic Shisha Hose Corrugated Pipe Making Machine This machine is mainly designed for Shisha Hookah hose, Air Conditioner Hose manufacture, the most commonly used material is PP/HDPE granules. The corrugated former machine is loaded with a well structured corrugated mould pairs, its running is reliable and smooth. Its speed can reach to 10~15m/min+.

(Please note: If your material is different as we mentioned, please contact us, because different raw material should use different Extruder Design, please refer to us, by which material used during production.)

Main Components List:

1. HSJ-45mm Single Screw Extruder

2. Mould & Die Head

3. Corrugated Forming Machine

4. Belt Traction Machine

5. Cutting Machine Composite

Item	SJ-45 Extrusion Line	SJ-55 Extrusion Line
Extruder	SJ-45 Single Screw Extruder	SJ-55 Single Screw Extruder
Pairs of Mould Block	50 Pairs	60 Pairs
Pipe Diameter	7-20mm	16-32mm
Drawing Speed	8-12m/min	10-15m/min
Cooling Method	Wind Cooling	Wind Cooling
Weight	2850kg	4000kg
Dimension(L×W×H)	7500 × 1600 × 1700mm	9500 × 2000 × 1700mm

Shisha Hookah Hose Sample

Diameter: 16mm

Length: 1.5m, use 60 pairs Corrugators

Diameter: 11mm

Length: 1.2m, use 50 pairs Corrugators

Plastic single-wall corrugated pipes have features of high temperature resistance, corrosion resistance and abrasion resistable,
high intensity, good flexibility, etc.

Successful Customer Cases

Testing Video at Customer Workshop

This machine is installed at Pakistan workshop, they are a shisha hose manufacture, and mainly exported the shisha sets to gulf countries. This machine is very successfully running for many years.

Our side supply one-stop solution to the customers, from A to Z, life long time service.

Detail Images

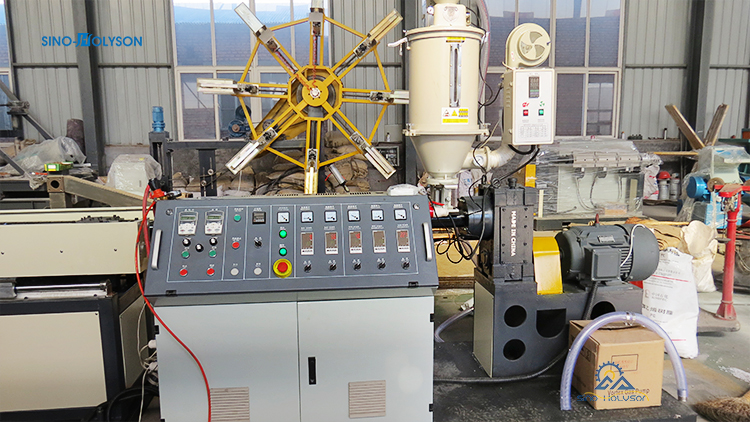

HSJ-55/30 Single Screw Extruder

HSJ-45/55mm Single Screw Extruder This Extruder is designed specially for producting for single wall corrugated pipes, which is installed with 11/15kw driving motor. The screw and barrel is specially designed according to the Chemical Characteristic of the granules for corrugated pipes production. It has the advantages of high tenacity, high impact, good bending performance, high temperature resistance, etc.

MAIN COMPONENTS LIST:

1. Screw & Barrel: 38CrMoAl, LD:30/1, Special Gradual Design

2. Visionary Feeding Hopper - detect the material feeding
3. Hopper Drier - Keep the raw material dry before production
4. Clean Operation Panel - Multi-Direction Adjustment

Corrugated Pipe Forming Machine

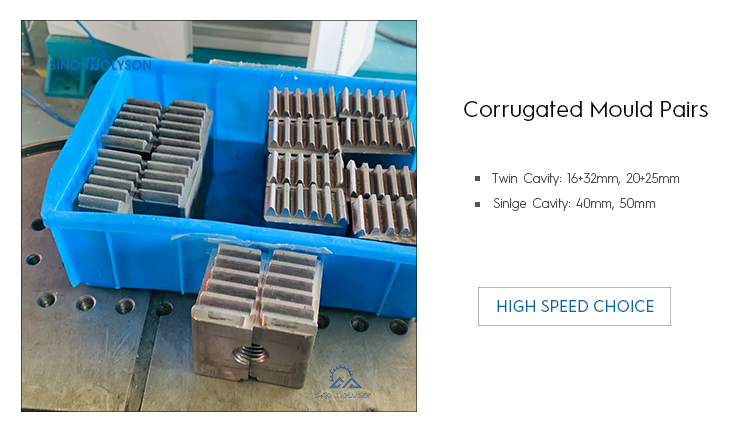

Chain Design Corrugated Pipe Forming Machine installed with 50-60 pairs of forming mould, the material of the mould is 40Cr, which is very high strong. The forming machine size will based on the final hose length accordingly.

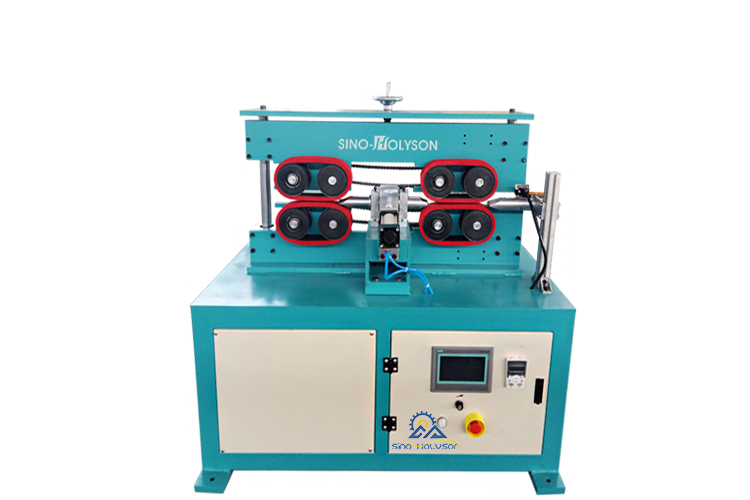

Traction & Cutting Machine

This Traction and Cutting Machine is specially for Shisha Hookah Hose use. Traction machine is designed into two stations, first station is for haul off the pipe at a uniform speed, and feed hose to the cutters. A hydraulic cutter controlled by PLC system will automatically cut the hose at set length. And the second station haul off machine is pull the hose out.

---------------------------------------------------------------------------------------------------------------------------------------

YOU MIGHT ALSO NEED

TWO STATION PIPE COILER MACHINE This is mainly used for coil the corrugated pipes into rolls, like 50m/roll, 100m/roll. Usually the coiled corrugated pipes are used as electrical conduits, which mainly functions as the protection the cable wires. If add this coiler, you can also extend your business into this area.

Corrugated Pipe in ROLLS

Advantages:

1. Auto-Metering Unit

2. Alarming automatically, when coiled into set length, for example 50m.

Downstream Machine

Industrial Chiller

10P Industrial Chiller is the most suggested choice, it can supply at least 3 lines

Air Compressor

5.5kw Air Compresser, which is mainly used for air supplying of the production.

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Film Packing	Standard package is soft film and protected with thick sponge. All machine will be fasten with steel wire to ensure the safety during that long sea transportation. Plywood case packing is also can be provided as per customer requirements.

Woodcase Packing
